Chapter 8: Tools & Accessories
Complete accessories checklist, installation tools, consumables, spare parts inventory, and procurement guidance for ENMS projects
A successful ENMS installation requires not only the core monitoring equipment and supporting systems described in previous chapters, but also a comprehensive set of accessories, installation tools, consumables, and spare parts. Inadequate preparation of accessories is one of the most common causes of installation delays and return visits to site. This chapter provides a complete accessories and tools checklist, procurement guidance, and a recommended spare parts inventory for ongoing operations and maintenance.
8.1 Accessories & Tools Checklist

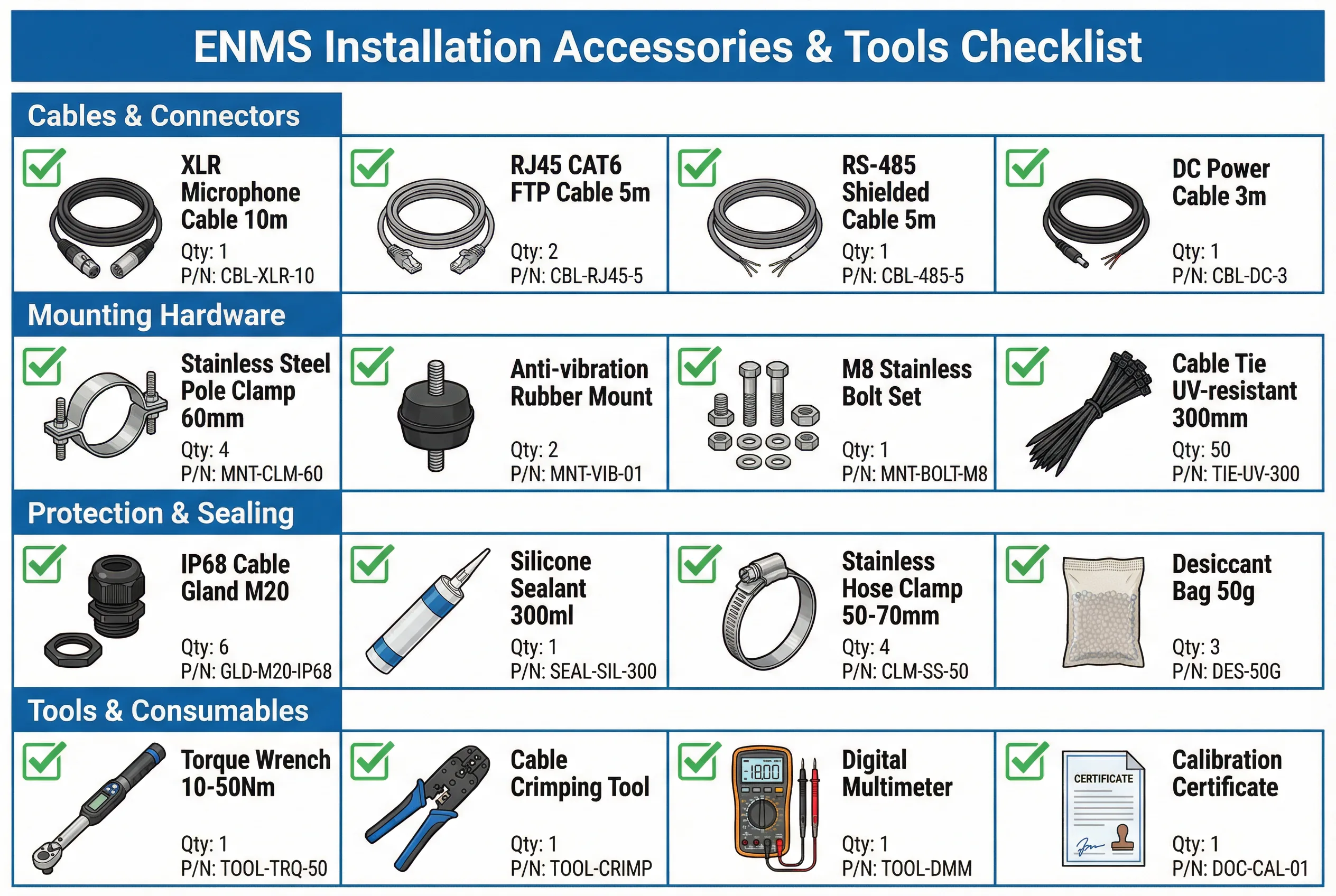

The checklist infographic below presents all required accessories and installation tools organized into four categories: Cables & Connectors, Mounting Hardware, Protection & Sealing, and Tools & Consumables. Each item includes the recommended quantity per station, part number reference, and a visual representation for easy identification during procurement and installation.
Figure 8.1: Complete ENMS installation accessories and tools checklist organized into four categories: Cables & Connectors, Mounting Hardware, Protection & Sealing, and Tools & Consumables, with quantities and part numbers for each item
The checklist covers 16 essential items across four categories. The Cables & Connectors category includes the XLR microphone cable, RJ45 CAT6 FTP network cable, RS-485 shielded cable for meteorological sensors, and DC power cable. The Mounting Hardware category covers the stainless steel pole clamp, anti-vibration rubber mount, M8 stainless bolt set, and UV-resistant cable ties. The Protection & Sealing category includes IP68 cable glands, silicone sealant, stainless hose clamps, and desiccant bags. The Tools & Consumables category covers the torque wrench, cable crimping tool, digital multimeter, and calibration certificate documentation.
8.2 Detailed Accessories Specification Table
The table below provides detailed technical specifications and procurement notes for each accessory item, enabling purchasing teams to source equivalent products when the specified part numbers are unavailable.
| Item | Category | Specification | Qty/Station | P/N | Notes |
|---|---|---|---|---|---|
| XLR Microphone Cable | Cable | Shielded 2-core + screen, XLR-M to XLR-F, 10m | 1 | CBL-XLR-10 | Low-capacitance, 95% shield coverage |
| RJ45 CAT6 FTP Cable | Cable | CAT6 FTP, RJ45 both ends, 5m, outdoor rated | 2 | CBL-RJ45-5 | UV-resistant jacket for outdoor runs |
| RS-485 Shielded Cable | Cable | Shielded twisted pair, 0.5mm², 5m | 1 | CBL-485-5 | Belden 9841 or equivalent |
| DC Power Cable | Cable | 2-core 4mm², red/black, 3m, MC4 connectors | 1 | CBL-DC-3 | MC4 connectors for solar panel connection |
| Stainless Steel Pole Clamp | Mounting | 316 SS, 60mm diameter, M8 bolts included | 4 | MNT-CLM-60 | For 60mm OD pole; specify pole OD when ordering |
| Anti-vibration Rubber Mount | Mounting | M8 thread, 50kg load rating, -40°C to +80°C | 2 | MNT-VIB-01 | Between enclosure and mounting bracket |
| M8 Stainless Bolt Set | Mounting | M8×40mm bolt, nut, flat washer, spring washer, A4 SS | 1 set (10 pcs) | MNT-BOLT-M8 | A4-80 grade for coastal environments |
| Cable Tie UV-resistant | Mounting | Nylon 66, UV-stabilized, 300mm×4.8mm, black | 50 | TIE-UV-300 | Rated for 10+ years outdoor exposure |
| IP68 Cable Gland M20 | Protection | Nylon PA66, M20×1.5, cable range 6–12mm, IP68 | 6 | GLD-M20-IP68 | One per cable entry point; size to match cable OD |
| Silicone Sealant | Protection | Neutral cure, -60°C to +200°C, clear, 300ml cartridge | 1 | SEAL-SIL-300 | For sealing around cable glands and conduit entries |
| Stainless Hose Clamp | Protection | 316 SS, 50–70mm range, W4 band | 4 | CLM-SS-50 | For securing conduit and cable bundles to pole |
| Desiccant Bag | Protection | Silica gel, 50g, indicator type, replaceable | 3 | DES-50G | Replace when color indicator changes; check every 6 months |
| Torque Wrench | Tool | 10–50 Nm range, ±4% accuracy, 3/8" drive | 1 | TOOL-TRQ-50 | Required for correct bolt torque per manufacturer spec |
| Cable Crimping Tool | Tool | RJ45 + RJ11 + ferrule, ratchet mechanism | 1 | TOOL-CRIMP | For field termination of network and signal cables |
| Digital Multimeter | Tool | CAT III 600V, DC/AC voltage, resistance, continuity | 1 | TOOL-DMM | For verifying wiring continuity and power supply voltages |
| Calibration Certificate | Document | NATA/UKAS accredited, traceable to SI units | 1 | DOC-CAL-01 | Must accompany instrument; keep on file for regulatory audit |
8.3 Recommended Spare Parts Inventory
Maintaining an adequate spare parts inventory reduces mean time to repair (MTTR) and ensures that monitoring continuity is maintained when components fail. The table below provides the recommended spare parts inventory for a network of 10–20 monitoring stations.
| Spare Part | Recommended Stock (10–20 stations) | Criticality | Lead Time | Storage Requirement |
|---|---|---|---|---|
| Measurement microphone (matched pair) | 2 units | Critical | 4–8 weeks | Climate-controlled, original case |
| Windscreen / nose cone | 10 units | Critical | 1–2 weeks | Dry storage |
| Cellular router | 2 units | Critical | 2–4 weeks | Anti-static bag, dry |
| MPPT charge controller | 2 units | Critical | 2–4 weeks | Dry storage |
| LiFePO4 battery (12V 100Ah) | 1 unit | High | 4–6 weeks | 50% SoC, 15–25°C |
| IP68 cable glands (M20) | 20 units | High | 1 week | Dry storage |
| XLR microphone cable 10m | 5 units | High | 1 week | Dry storage, coiled |
| Surge protection device (RS-485) | 10 units | High | 1–2 weeks | Dry storage |
| Desiccant bags 50g | 50 units | Medium | 1 week | Sealed bag until use |
| Silicone sealant cartridges | 5 units | Medium | 1 week | <25°C, away from direct sun |
| M8 stainless bolt sets | 10 sets | Medium | 1 week | Dry storage |
| GNSS timing module | 1 unit | Medium | 2–4 weeks | Anti-static bag |
Procurement Tip: Establish a vendor-managed inventory (VMI) agreement with your primary hardware supplier for critical spare parts. Under a VMI arrangement, the supplier maintains a consignment stock at your warehouse and replenishes it automatically when stock falls below the reorder point. This eliminates the need for capital investment in spare parts while ensuring availability when needed.
8.4 Calibration Equipment and Acoustic Reference Standards
Maintaining measurement traceability requires access to calibration equipment and reference standards. The table below lists the calibration equipment required for field verification and laboratory calibration of ENMS instruments.
| Equipment | Type | Specification | Calibration Interval | Use |
|---|---|---|---|---|
| Acoustic calibrator (pistonphone) | Class 1 (IEC 60942) | 114 dB(A) at 1 kHz, ±0.2 dB | Annual (NATA/UKAS) | Daily field calibration check |
| Sound level calibrator | Class 1 (IEC 60942) | 94 dB(A) at 1 kHz, ±0.3 dB | Annual | Pre/post measurement check |
| Electrostatic actuator | Laboratory grade | For 1/2" microphone, 20 Hz–20 kHz | 2 years | Frequency response verification |
| Reference microphone | Class 1 (IEC 61094) | Self-noise <5 dB(A), traceable | 2 years (NATA/UKAS) | Comparison calibration |
| Barometric pressure gauge | Digital, ±0.1 hPa | 600–1100 hPa range | Annual | Calibration condition recording |
| Temperature/humidity meter | Class A, ±0.3°C / ±2% RH | -20°C to +60°C, 0–100% RH | Annual | Calibration condition recording |
